Cold Beveling Copper Tube Chamfering Machine 35r/Min

Product Categories
Zhejiang Wellnit Mechanical Technology Co.,Ltd
Contact Now

Cold Beveling Copper Tube Chamfering Machine 35r/Min

  • 1
  • 2

Brand Name : wellnit

Model Number : ISE-252-1

Certification : ISO/CE

Place of Origin : china

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 500sets per week

Delivery Time : 3-7days

Packaging Details : wooden packing

Material : Aluminum body

Core Components : Engine, Bearing, Gearbox, Motor, Pressure vessel

Wall Thickness : ≤15mm

Frequency : 50/60HZ

Working Range : 3"-10"

Rotation Speed : 35r/min

Voltage : 220-240V

Motor color : Green

Operation : Manual

Driven : Electric or Pneumatic

Insert Material : M42

Warranty : 1 Year

Power (kW) : 1.2

Weight (KG) : 35 KG

Size : 780*355*365mm

Contact Now

Pipe Cold beveling Stainless Steel Copper Tube Chamfering Machine

Production Description

This series is Stainless Steel Copper Tube Chamfering Machine with the following advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

Technical Parameter

Model Working Range(ID-OD) Wall Thickness(mm) Rotation Speed(r/min)
ISE-30 ISM-30 Φ18-30 1/2"-3/4" ≤15 50
ISE-80 ISM-80 Φ28-89 1"-3" ≤15 55
ISE-120 ISM-120 Φ40-120 11/4"-4" ≤15 30
ISE-159 ISM-159 Φ65-159 21/2"-5' ≤20 35
ISE-252-1 ISM-252-1 Φ80-273 3"-10" ≤20 16
ISE-252-2 ISM-252-2 Φ80-273 ≤75 16
ISE-352-1 ISM-352-1 Φ150-356 6"-14" ≤20 14
ISE-352-2 ISM-352-2 Φ150-356 ≤75 14
ISE-426-1 ISE-426-1 Φ273-426 10"-16" ≤20 12
ISE-426-2 ISM-426-2 Φ273-426 ≤75 12
ISE-630-1 ISM-630-1 Φ300-630 12"-24" ≤20 10
ISE-630-2 ISM-630-2 Φ300-630 ≤75 10
ISE-850-1 ISM-850-1 Φ490-850 24"-34" ≤20 9
ISE-850-2 ISM-850-2 Φ490-850 ≤75 9

Product Show

Cold Beveling Copper Tube Chamfering Machine 35r/Min Cold Beveling Copper Tube Chamfering Machine 35r/Min

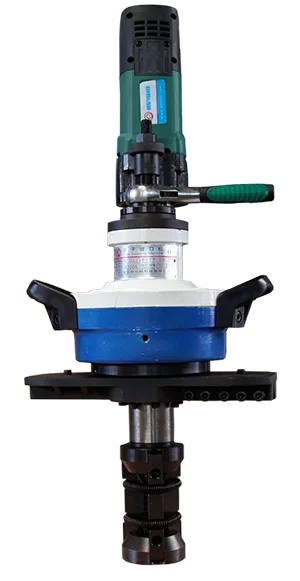

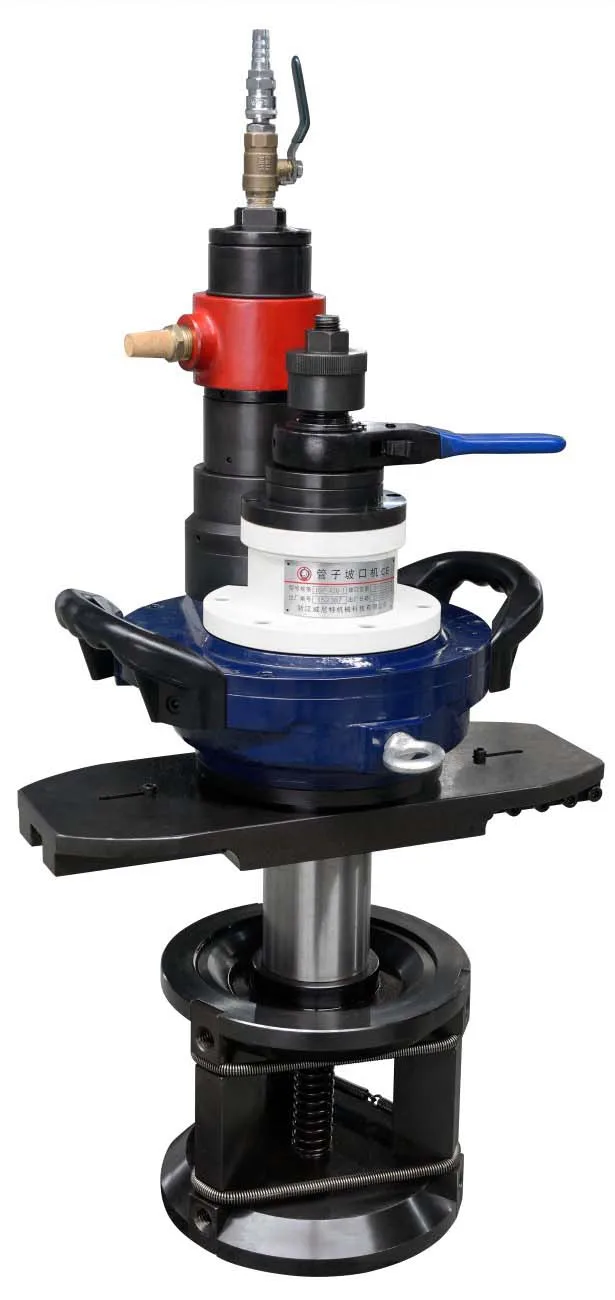

Electric Driven Pneumatic Driven

Order Guide

Before you place order to us, please let us know the following information:

  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)

Machine On-Site Order Guide

Cold Beveling Copper Tube Chamfering Machine 35r/Min
