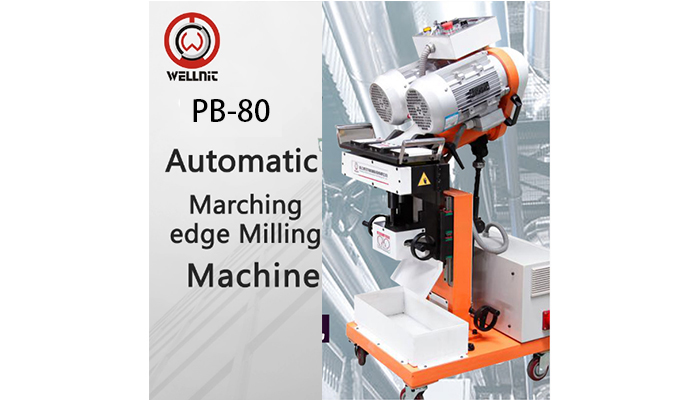

Factory Price Beveling & Chamfering Machine For Metal Plate Edge Polishing Self Moving For Thick Plate Wellnit PB-80
Production Feature:
The milling groove slope is large. The processing angle can be adjusted 0-90degree. The maximum plate thickness is 6-80mm and the processing speed is 0-1.4m per minute.Wide range of applicable plate types: applicable to carbon steel, chromium steel, cast iron, stainless steel, hard plastic and other plates.
The processing method is elegant and flexible, and the large and small plates can be easily processed (the machine can walk the groove by itself when processing the super large plate with the plate bracket; the small plate processing machine will keep still and the plate will automatically move for groove processing).Complete cold cutting without changing the original material of the plate.The processing speed can be adjusted freely (equipped with double motors, powerful power).It is easy to operate and easy to use.High safety factor of equipment.
1. Safety lock, Rear feed motor design and independent design of electric box. more sage.
2. OL Protection
3. Digital Display, Easy processing with Operation.
4. Feed adjustable,speed adjustable
5. Angle Adjustable in range
6. Milling surface reach Ra 3.2-6.3
7.Available for V/Y type of Bevel and milling to Vertical.
8.Processing material: Stainless steel, carbon steel,AL Alloy etc.
Bevel bits:
Machine spare parts:
Machine detail parts:
Technical Parameter:
| Power Supply | AC 380V 50HZ |
| Total Power | 3400w |
| Spindle Speed | 1050r/min(adjustable) |
| Feed Speed | 0-1500r/min(adjustable) |
| Clamp Thinkness | 6-40mm |
| Clamp Width | >100mm |
| Processing Length | >300mm |
| Bevel Angle | 10°-60 ° |
| Single Bevel Width | 1-15mm |
| Bevel Width | 1-45mm |
| Cutter Plate | φ40mm |
| Cutter Qty | 6pcs |
| Workable Height | 820-860mm |
| Travel Space | 800*800mm |
| Net Weight | 250kgs |
| Gross Weight | 300kgs |
| Package Size | 770*690*133mm |
Non-standard machines are available according to customers’requirement.
Process Diffferent Material Pipe:
Carbon Steel,Stainless Steel,Alloy And Ohers.
Bevel Angle:
Our machines on site:
Process Result:
Packing:
Before Order Guide need to learn:
Before you place order to us, please let us know the following information:
1. Choose the right Model
2. Confirm your electric power supply ( Voltage, frequency and phase)
3. Confirm the milling angel required
4. Confirm the welding joint required (U,V or others)
5. Advise your processing material ( Carbon steel, stainless steel or others)
6. Other special demands about machine
7. The spare parts needed
