Duplex Stainless Steel Pipe Cutting And Beveling Machine Electric Clamshell Type

Name: Duplex Stainless Steel Pipe Cutting And Beveling Machine Electric Clamshell Type
Brand: Wellnit
Price: 2800 USD

Quality Duplex Stainless Steel Pipe Cutting And Beveling Machine Electric Clamshell Type for sale

Brand Name : Wellnit

Model Number : OCE-325

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $2800

Payment Terms : T/T,

Supply Ability : 15 sets / month

Delivery Time : within 3days

Packaging Details : Plywood box

electric power : 2000W

Machine feed way : automatic feed

machine working range : 168-325mm

wall thickness : less than 30mm

Contact Now

Duplex stainless steel pipe cutting and beveling machine electric type clamshell type pipe cutter

machine introduction

This series of external mounted electric pipe cutting and beveling machine is easy to install and convenient to use. It has
 features of simple maintenance, small installation space, and quick installation. It's widely used in long distance pipeline,
 power plants, nuclear power, petroleum, chemical, natural gas, boiler plant, pharmacy, pipeline as well as the pipeline
 installation and repair work sites.

This machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine
 to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut and bevel, single point and flange facing operations, as well as weld end preparation on open ended pipe. It can be used on pipe size from 1” to 56" of most wall thicknesses and materials.

Duplex Stainless Steel Pipe Cutting And Beveling Machine Electric Clamshell Type

Pipe Size: 25-1430 mm or 1-56 inch
 Wall thickness (standard):≤35
 Wall thickness (heavy duty):≤110 mm
 Cutting speed: 42 r/min - 8 r/min
 Product material: chrome molybdenum steel, low temperature steel, titanium alloy steel, etc.

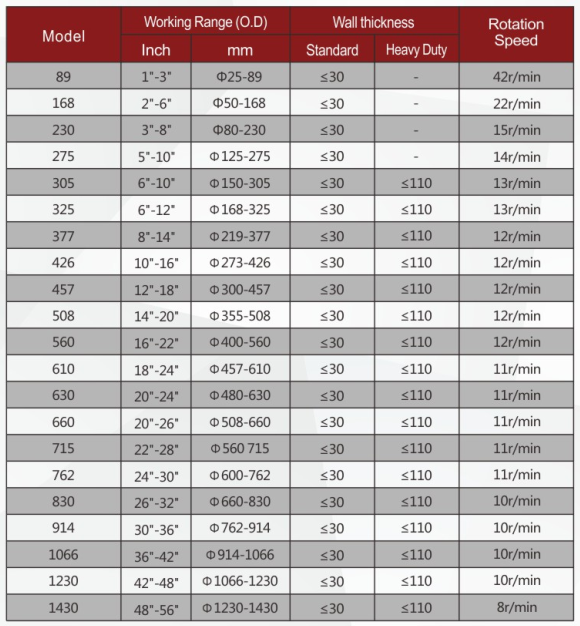

machine specification

Duplex Stainless Steel Pipe Cutting And Beveling Machine Electric Clamshell Type

Features:

Low axial & radial clearance.
Small working radius, suitable for any working situation.
Cutting and beveling at the same time.
Can be opened to use on pipe in the wall or no end open pipe.
Cold cutting work methods, which don't damage the pipe.
Multiple bevel joint types: V, U, J, compound and counter boring etc.
Customize the machine according to your requirements.
