Groove Plate Edge Milling Machine Self Moving 1500mm/Min

Product Categories

Pipe Cutting And Beveling Machine [120]
Pneumatic Pipe Cutting Beveling Machine [30]
Hydraulic Pipe Cutting And Beveling Machine [14]
Electric Pipe Cutting And Beveling Machine [18]
Pneumatic Pipe Beveler [33]
Electric Pipe Beveling Machine [57]
Pipe Grooving Machine [11]
Plate Edge Milling Machine [55]
Portable Plate Beveling Machine [26]
Handheld Hydraulic Tools [10]
Welding And Cutting Equipment [11]
CNC Pipe Cutting Chamfering Machine [7]
Flange Facing Machine [11]
Portable Line Boring Machine [4]

Zhejiang Wellnit Mechanical Technology Co.,Ltd

Contact Now

Groove Plate Edge Milling Machine Self Moving 1500mm/Min

Name: Groove Plate Edge Milling Machine Self Moving 1500mmMin
Brand: WELLNIT
Price: 1 USD

Quality Groove Plate Edge Milling Machine Self Moving 1500mm/Min for sale

Brand Name : WELLNIT

Model Number : PB-20D

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : TT, L/C

Supply Ability : 20Sets per day

Delivery Time : 5-8days

Packaging Details : WOODEN BOX

Type : plate beveling machine

Material : Metal

Voltage : 380V 50HZ

Rated Power : 1620W

Motor : 1440r/min

Processing Plate Thickness : 3-40mm

Feed Speed : 0-1500mm/min

Once time bevel width : 1-100mm

Dimension(L*W*H) : 665*605*845mm

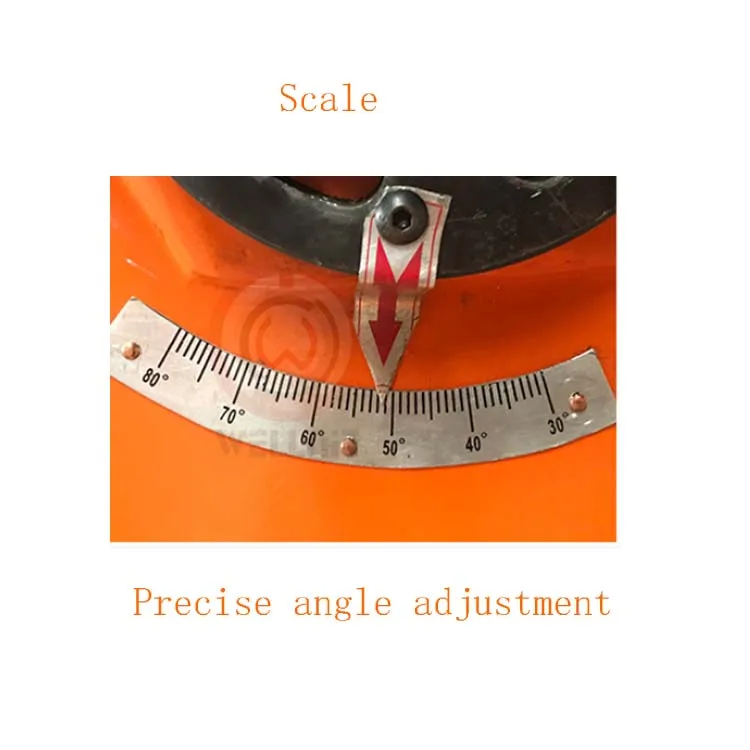

Milling Angle : 30-75 Deg(Adjustable)

Max Bevel Width : 1-20mm

Gross Weight : 150Kgs

Clamp plate width : 30mm

Contact Now

Automatic Portable Steel Plate Beveling Machine PB-20D

The Machine bevel the steel, plate, stainless steel and aluminum automatically, which have big difference with milling machine in the market. We provide customer stable products.

The PB-20D type milling machine:
1. Machine parts:Anti-corrosion,hardening and tempering,abrasion treatment;
2. Welded parts: Stress relief treatment, deburring treatment, high temperature paint treatment;
3. More safe: The Control box is separate from the Electrical box, high voltage power supply do not contact with operation interface.

Specification

Power Supply	AC 380V 50HZ	Bevel Width	1-20mm

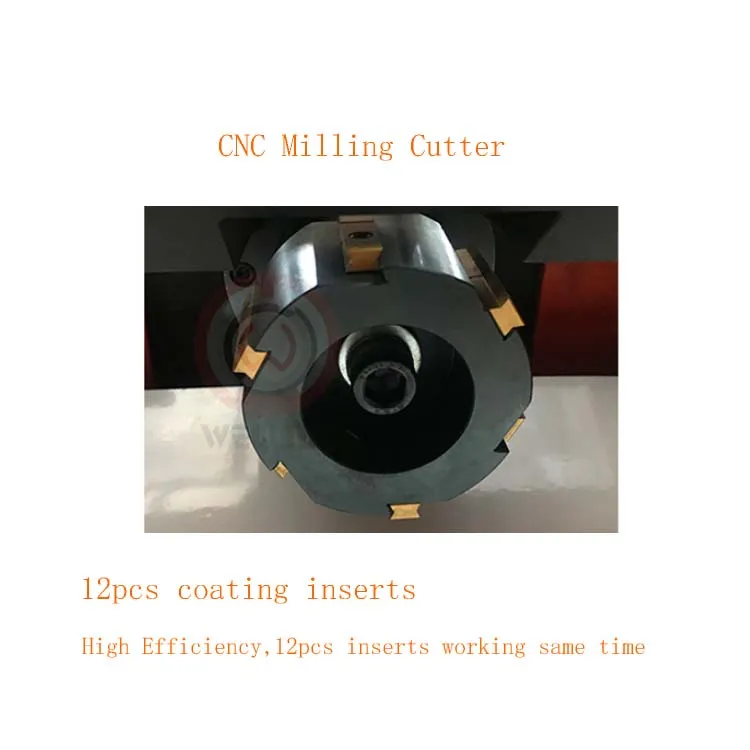

Total Power	1620W	Cutter Qty	12Pcs
Clamp Thickness	3-40mm	Rotation	1440r/min
Feed Speed	0-1500mm/min	Bevel Angle	30-37.5deg
Max bevel width	1-10mm	Net Weight	120Kgs

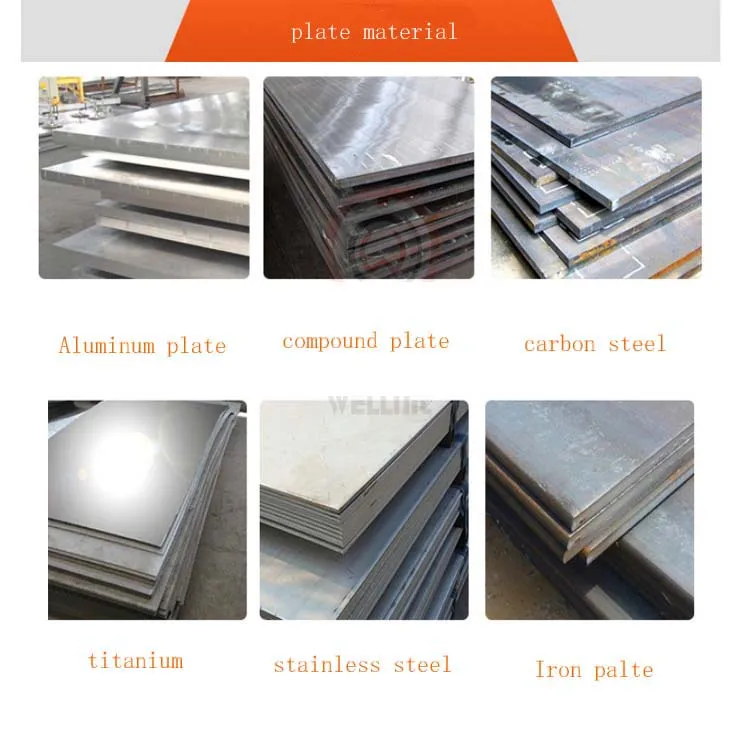

Porcess Material	CS,SS,Aluminum, compound and ohters	Gross Weight	150Kgs

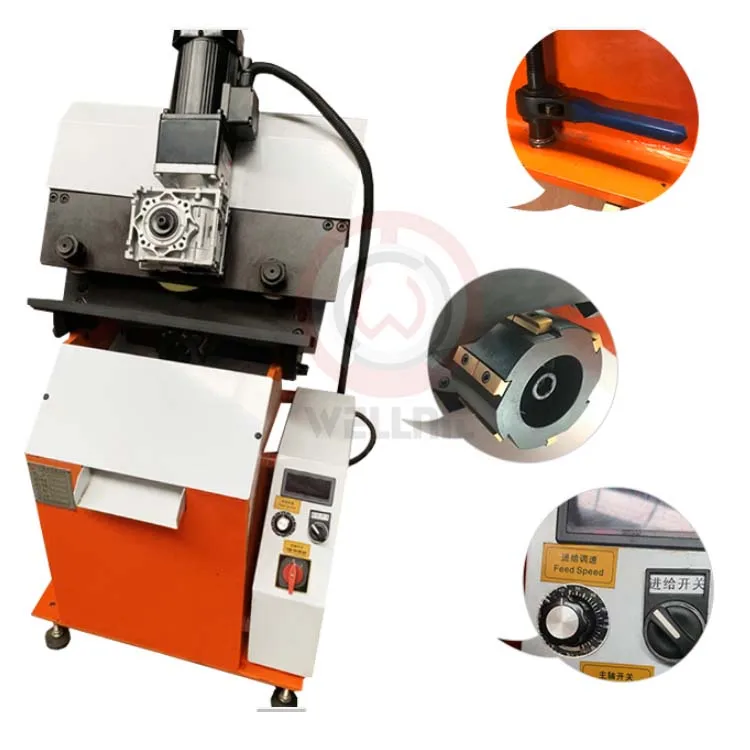

Detail Picture

Groove Plate Edge Milling Machine Self Moving 1500mm/Min

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. Or 30 days , it's depand to quantity.

Q: What is your terms of payment ?

1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;

2) If all the cost is less than USD $ 10000, T/T 100% required in advance.

Order Guide

Before you place order to us, please let us know the following information:

*Choose the right Model

*Confirm your electric power supply ( Voltage, frequency and phase)

*Confirm the beveling angel required

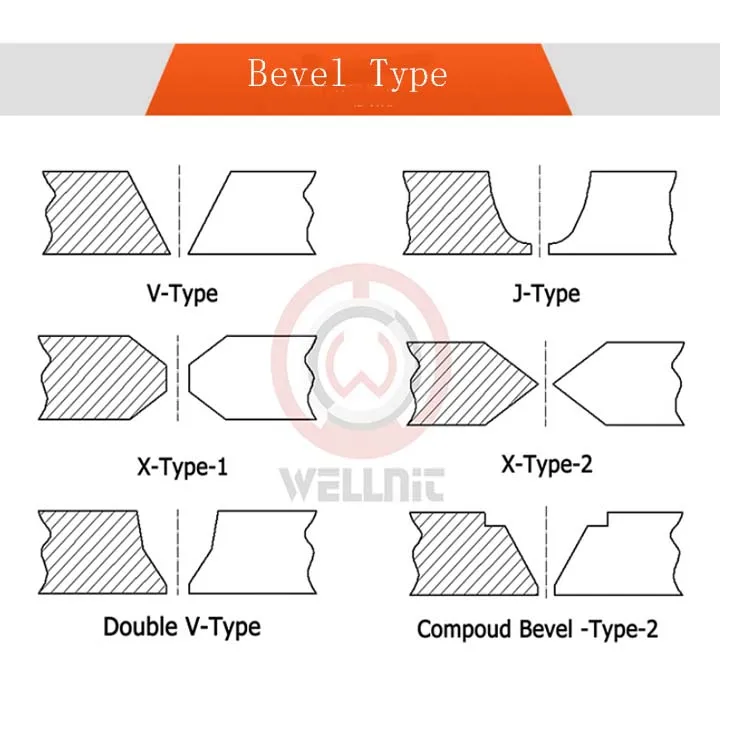

*Confirm the welding joint required (U, V, Double V or Compound preparation)

*Advise your pipe material ( Carbon steel, stainless steel or others)

*Other special demands about machine

*The spare parts needed

*If the pipe wall thickness more than 30mm, inform us in advance (Important)

Groove Plate Edge Milling Machine Self Moving 1500mm/Min

Packaging

Selling Units:	Single item
Single package size:	80X69X114 cm
Single gross weight:	255.0 KG
Package Type:	Wooden Case
